Twill Dutch Weave

Factory Quote Available

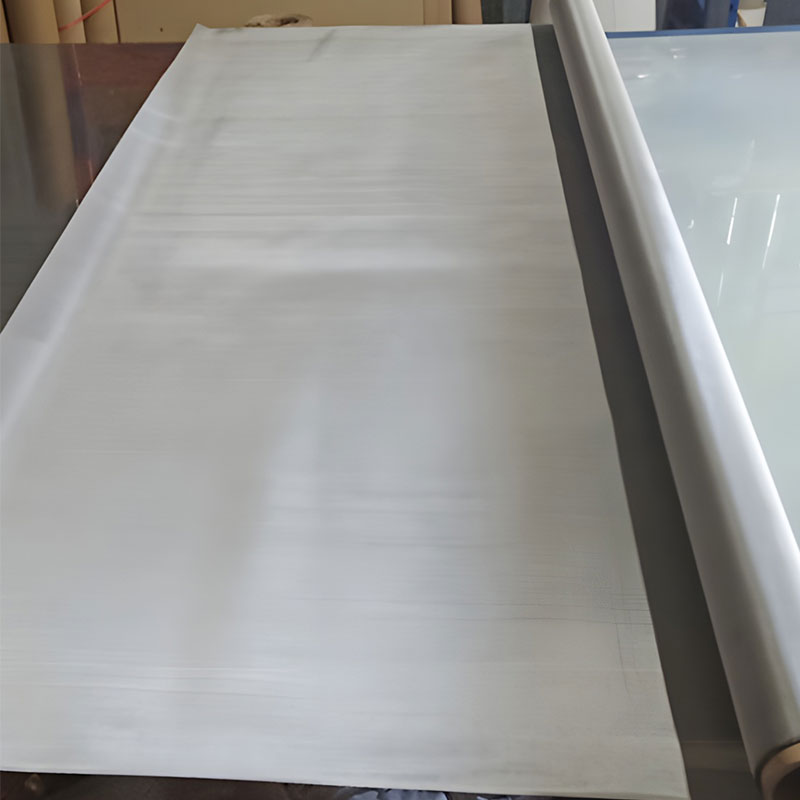

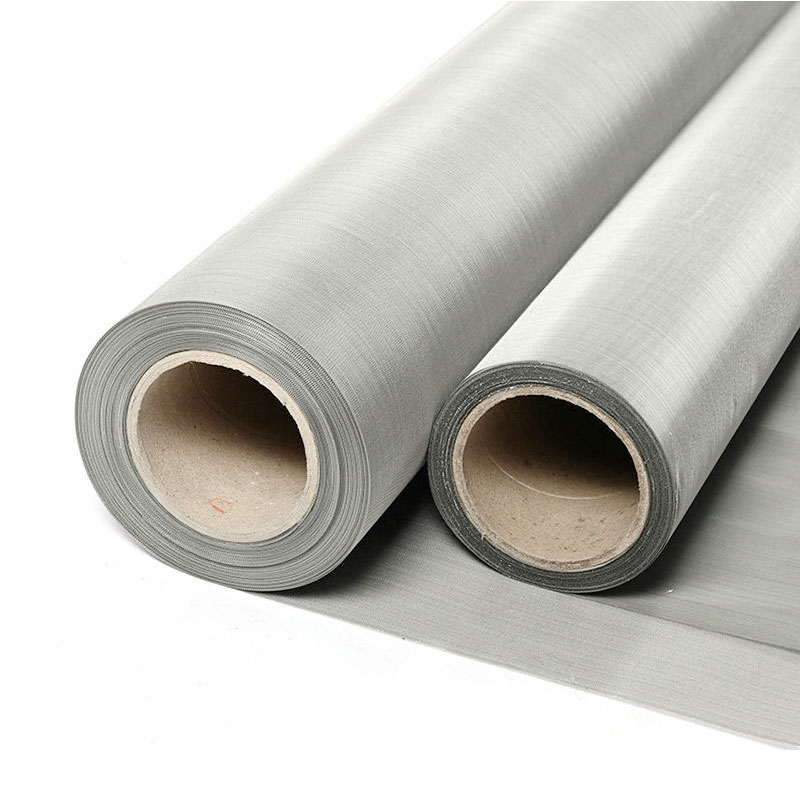

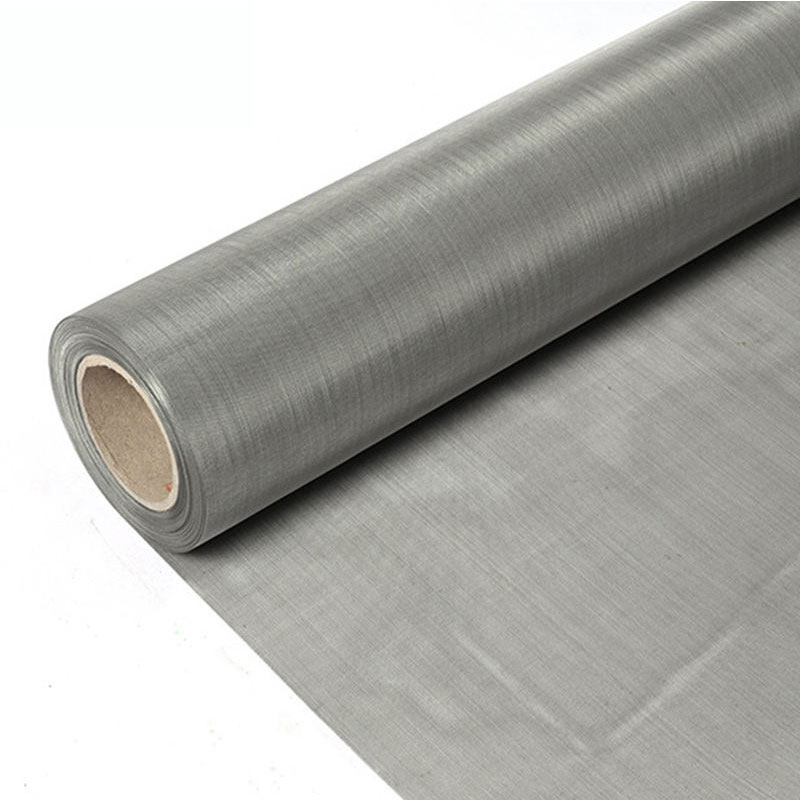

Twill Dutch weave is a high-density, high-precision filtration structure featuring thick, closely spaced warp wires and fine weft wires interlaced in a twill pattern. Its compact diagonal woven structure creates ultra-fine, stable micron apertures that cannot be achieved by standard plain or twill mesh. Offering extremely high filtration efficiency, superior pressure resistance and excellent anti-clogging performance, twill dutch mesh is ideal for rigorous fine filtration and high-pressure industrial working conditions.

Typical Applications

✅ Hydraulic and lubricating oil filtration

✅ Petrochemical and refinery fluid processing

✅ Pharmaceutical and chemical fine filtration

✅ Water treatment and purification systems

✅ High-precision filter cartridges, strainers and industrial filtration units

Twill Dutch weave is an advanced heavy-duty weaving technology specially developed for ultra-fine industrial filtration. Different from conventional weaving methods, it adopts thick, densely arranged warp wires as the main supporting structure, while ultra-fine weft wires are interlaced in a staggered two-over-two-under twill pattern.

This unique composite structure forms a multi-layered, densely compact mesh surface with extremely uniform and stable micro apertures. The diagonal twill weaving method further enhances structural tightness and mechanical strength, allowing the mesh to achieve ultra-fine filtration accuracy while maintaining excellent rigidity and pressure resistance.

Key Advantages

· Ultra-high Filtration Precision: The dense layered twill dutch structure provides precise micron-level particle interception, achieving finer filtration effect than plain dutch weave.

· Superior Structural Strength: Thick warp wires combined with staggered twill interlocking greatly improve tensile strength and pressure resistance, effectively resisting fluid impact and deformation under long-term high-pressure working conditions.

· Excellent Anti-clogging Performance: The special diagonal channel structure optimizes fluid permeability, balancing high precision and smooth flow, reducing particle accumulation and extending service cycle.

· Strong Corrosion and Chemical Resistance: Made of high-quality 304, 316 and 316L stainless steel materials, it is resistant to acid, alkali, oxidation and corrosion, suitable for harsh chemical and petrochemical environments.

· Stable Long-term Performance: Uniform aperture structure and rigid weaving craftsmanship ensure consistent filtration efficiency without aperture deformation or failure during continuous operation.

Material & Specifications

Our twill dutch mesh is produced from industrial and food-grade stainless steel. Various custom wire ratios and mesh grades are available to meet ultra-fine filtration requirements. Most common specifications are in stock for fast delivery, and customized sizes and processing can be provided for special engineering projects. For more details, see the next page.

Model	Mesh Count (Wap x Weft)	Wire Diameter (Inch)	Wire Diameter (mm)	Filter Rating (μm)	Weight (kg/m²)
HUZE-4810	48 x 10	0.50 x 0.50	0.020 x 0.020	400	3.63
HUZE-6318	63 x 18	0.40 x 0.60	0.016 x 0.024	220	4.14
HUZE-7215	72 x 15	0.45 x 0.55	0.018 x 0.022	250	4.78
HUZE-10720	107 x 20	0.24 x 0.60	0.009 x 0.024	210	3.34
HUZE-12016	120 x 16	0.35 x 0.45	0.014 x 0.018	180	4.49
HUZE-15224	152 x 24	0.27 x 0.40	0.011 x 0.016	160	3.73
HUZE-16017	160 x 17	0.27 x 0.45	0.011 x 0.018	160	2.02
HUZE-17018	170 x 18	0.27 x 0.45	0.011 x 0.018	160	4.01
HUZE-18020	180 x 20	0.27 x 0.45	0.011 x 0.018	170	4.29
HUZE-20040	200 x 40	0.17 x 0.27	0.007 x 0.011	120	2.17
HUZE-26040	260 x 40	0.15 x 0.27	0.006 x 0.011	55	2.19
HUZE-29076	290 x 76	0.09 x 0.19	0.004 x 0.007	40	1.27
HUZE-30080	300 x 80	0.15 x 0.20	0.006 x 0.010	35	2.49
Special specifications can be customized upon customers' requirements

Model

Mesh Count (Wap x Weft)

Wire Diameter (Inch)

Wire Diameter (mm)

Filter Rating (μm)

Weight (kg/m²)

HUZE-4810

48 x 10

0.50 x 0.50

0.020 x 0.020

400

3.63

HUZE-6318

63 x 18

0.40 x 0.60

0.016 x 0.024

220

4.14

HUZE-7215

72 x 15

0.45 x 0.55

0.018 x 0.022

250

4.78

HUZE-10720

107 x 20

0.24 x 0.60

0.009 x 0.024

210

3.34

HUZE-12016

120 x 16

0.35 x 0.45

0.014 x 0.018

180

4.49

HUZE-15224

152 x 24

0.27 x 0.40

0.011 x 0.016

160

3.73

HUZE-16017

160 x 17

0.27 x 0.45

0.011 x 0.018

160

2.02

HUZE-17018

170 x 18

0.27 x 0.45

0.011 x 0.018

160

4.01

HUZE-18020

180 x 20

0.27 x 0.45

0.011 x 0.018

170

4.29

HUZE-20040

200 x 40

0.17 x 0.27

0.007 x 0.011

120

2.17

HUZE-26040

260 x 40

0.15 x 0.27

0.006 x 0.011

2.19

HUZE-29076

290 x 76

0.09 x 0.19

0.004 x 0.007

1.27

HUZE-30080

300 x 80

0.15 x 0.20

0.006 x 0.010

2.49

Special specifications can be customized upon customers' requirements

Quality Control Team:

Each batch of wire mesh undergoes rigorous inspection for wire diameter accuracy, mesh opening consistency, and surface finish quality to ensure it meets international standards. We supply full chemical composition analysis and physical property test certificates with every shipment.
